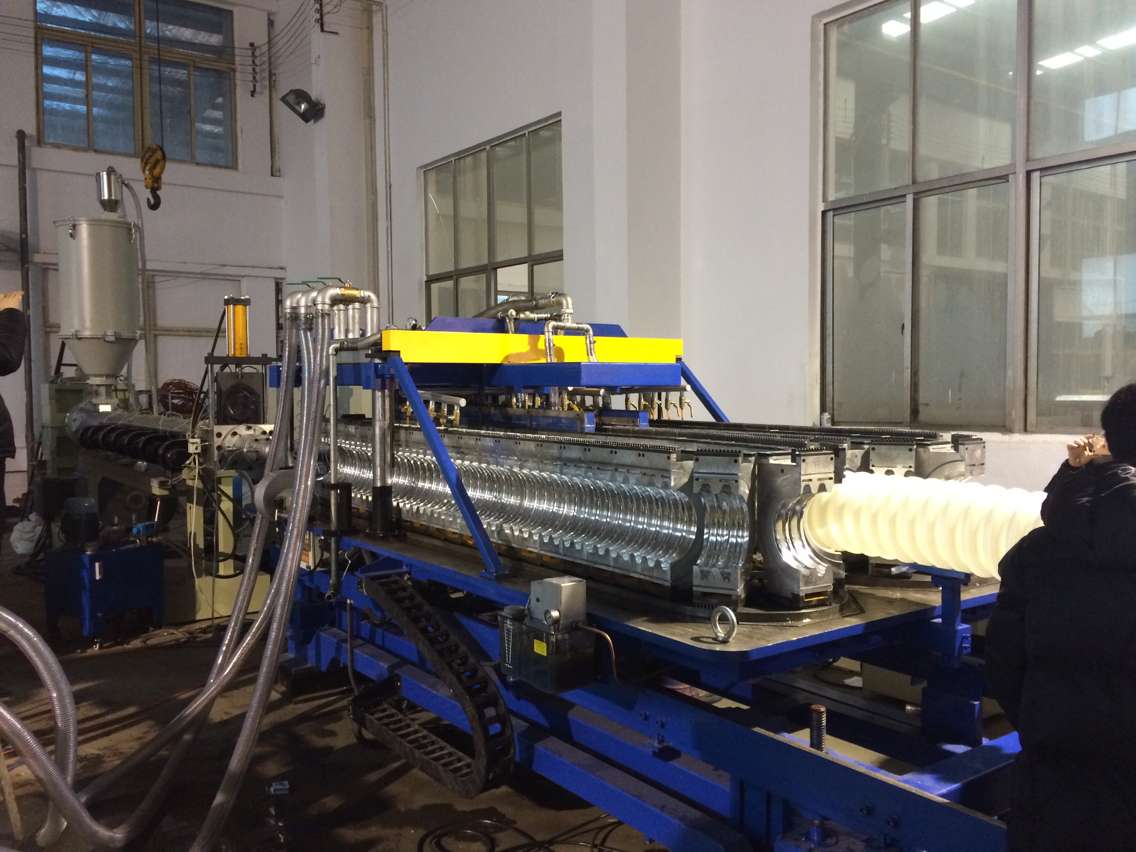

110-250mm expansion horizontal double wall corrugated pipe production line

It is fully computer controlled,automatic production line (Ø110-Ø250). It has features of high and stable output capacity as well as highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder.For PVC, you can choose conical twin screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can bu easily changed and they are equipped with air or water cooling system. The production line can also be equipment with siemens company SIEMENS control system.

The use of the final product:

Storm water and sewerage, drainage pipes for fields, streets, roads, squares and buildings,conveyor pipes, protection pipes for TV, glassfiber, telephone, electricity, IT and computer;protection pipes for cables, district heating systems, domestic connection lines ,structural and civil engineering.







Model

SGB250

SGB110

Structure Form

Horizontal

Horizontal

Applicable Raw Materials

HDPE/PP/PVC

HDPE/PP/PVC

Pipe Diameter Range

110-250mm

50-110mm

Max Extrusion Output

350kg/h

300kg/h

Expansion Mode

Belling-on-line,
double-wall socket joint

No expander

Forming Speed

0.5-5m/min

0.5-5m/min

Centre Height

1100mm

1100mm

Number of Mold Blocks(pairs)

48

50
